- Bore sizes (mm): 25, 32
- Lightweight and compact.
- Force amplification with a toggle mechanism and lock function.
- Spatter-proof construction.
- Equipped with a proximity switch.
- A model with a manually operated handle is available.

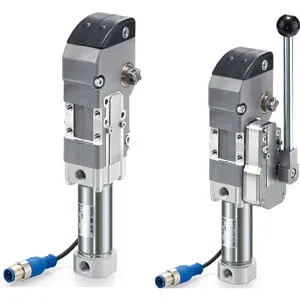

Series image. Appearance may vary by model and options.Pneumatic actuators
CKZT*
CKZT*, Power Clamp Cylinder, Compact Type, 25~32 Bore
Explore the features, model options and technical documentation for CKZT*. Contact Pnoneks to select the full part number for your application.
SMC ·Clamp Cylinders
Request a quote for your application.
Share your part number and quantity so we can confirm pricing and lead time.
Selecting CKZT*
Selecting CKZT*: review the full part number and your system conditions when considering this Pneumatic actuators record. Share Bore Size, Cylinder Port, Arm Opening Angle, S, Option, Manually Operated Handle, the required quantity and your application notes with Pnoneks. Final compatibility and lead time are confirmed during quotation.
ABOUT THE PRODUCT
The essentials for selection.
- Manufacturer
- SMC
- Series
- CKZT*
- Product group
- Pneumatic actuators
- Function
- Clamp Cylinders
- Applications
- Suitability is evaluated against technical specifications and application conditions.
- Selection parameters
- Bore Size, Cylinder Port, Arm Opening Angle, S, Option, Manually Operated Handle
Exact dimensions, operating ranges and compatibility depend on the full part number. Review the relevant SMC documentation and application conditions for technical selection.
TECHNICAL PRODUCT INFORMATION
Features and model options
Technical descriptions and values below are preserved in the manufacturer’s original language. Options describe alternatives within the series; not every combination is valid. We will verify the full part number when quoting.
| Parameter | Options / values |
|---|---|
| Bore Size | 25 mm · 32 mm |
| Cylinder Port | G · TN (NPT) · TP (Rc) |
| Arm Opening Angle | 90 (90°) · 105 (105°) |
| S | S |
| Option | X2797 (Base Type, w/o Clamp Arm) · X2798 (w/ Manually Operated Handle, w/o Clamp Arm) · X3064 (Metal Cover) · X3174 (Metal Cover) |
| Manually Operated Handle | None · L (Left Side Mounting) · R (Right Side Mounting) |
