- Base Mounted
- 2/3 Port Media Separated Valve
- Applicable fluid: Cleaning fluid, Diluent, Deionized water, Water, Air
- Flow rates: 0.9 l/min (water) and 57 l/min (air)
- Low particle generation
- Oil free and metal free

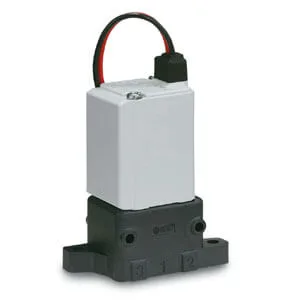

Series image. Appearance may vary by model and options.Fluid control
LVMK20/200
LVMK20/200, 2/3 Port Media Separated Valve, Base Mounted
Explore the features, model options and technical documentation for LVMK20/200. Contact Pnoneks to select the full part number for your application.
SMC ·Process Valves
Request a quote for your application.
Share your part number and quantity so we can confirm pricing and lead time.
Selecting LVMK20/200
Selecting LVMK20/200: review the full part number and your system conditions when considering this Fluid control record. Share Symbol, Coil Voltage, Fluid Contact Material, Lead Wire Length, the required quantity and your application notes with Pnoneks. Final compatibility and lead time are confirmed during quotation.
ABOUT THE PRODUCT
The essentials for selection.
- Manufacturer
- SMC
- Series
- LVMK20/200
- Product group
- Fluid control
- Function
- Process Valves
- Applications
- Suitability is evaluated against technical specifications and application conditions.
- Selection parameters
- Symbol, Coil Voltage, Fluid Contact Material, Lead Wire Length
Exact dimensions, operating ranges and compatibility depend on the full part number. Review the relevant SMC documentation and application conditions for technical selection.
TECHNICAL PRODUCT INFORMATION
Features and model options
Technical descriptions and values below are preserved in the manufacturer’s original language. Options describe alternatives within the series; not every combination is valid. We will verify the full part number when quoting.
| Parameter | Options / values |
|---|---|
| Symbol | 23 (2 Ports, N.C.) · 205 (3 Ports, Universal) |
| Coil Voltage | 5 (24 V DC) · 6 (12 V DC) |
| Fluid Contact Material | J (Body: PPS, Poppet/Seal: EPDM) · K (Body: PPS, Poppet/Seal: FKM) |
| Lead Wire Length | 300 mm · 6 (600 mm) · 10 (1000 mm) |
