- Compact and Lightweight.
- Applicable cylinder bore sizes (mm): ø 20 ~ ø 40.
- Rotating angle ± 2°.
- Allowable eccentricity up to 0.75 mm.
- Allowable axial force up to 880 N.

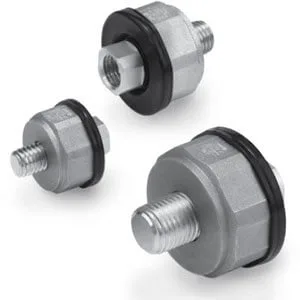

Series image. Appearance may vary by model and options.Pneumatic actuators
JT
JT, Floating Joint, Standard, Lightweight/Compact
Explore the features, model options and technical documentation for JT. Contact Pnoneks to select the full part number for your application.
SMC ·Actuator Accessories
Request a quote for your application.
Share your part number and quantity so we can confirm pricing and lead time.
Selecting JT
Selecting JT: review the full part number and your system conditions when considering this Pneumatic actuators record. Share Size, the required quantity and your application notes with Pnoneks. Final compatibility and lead time are confirmed during quotation.
ABOUT THE PRODUCT
The essentials for selection.
- Manufacturer
- SMC
- Series
- JT
- Product group
- Pneumatic actuators
- Function
- Actuator Accessories
- Applications
- Suitability is evaluated against technical specifications and application conditions.
- Selection parameters
- Size
Exact dimensions, operating ranges and compatibility depend on the full part number. Review the relevant SMC documentation and application conditions for technical selection.
TECHNICAL PRODUCT INFORMATION
Features and model options
Technical descriptions and values below are preserved in the manufacturer’s original language. Options describe alternatives within the series; not every combination is valid. We will verify the full part number when quoting.
| Parameter | Options / values |
|---|---|
| Size | 20 (Applicable Cylinder: ø20; Thread: M8 x 1.25) · 32 (Applicable Cylinder: ø25, ø32; Thread: M10 x 1.25) · 40 (Applicable Cylinder: ø40; Thread: M14 x 1.5) |
