VX31/32/33

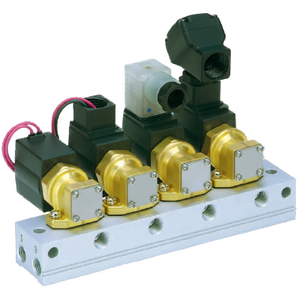

VX31/32/33, Direct Operated 3 Port Solenoid Valve for Manifold

Explore the features, model options and technical documentation for VX31/32/33. Contact Pnoneks to select the full part number for your application.

SMC ·Process Valves

Request a quote for your application.

Share your part number and quantity so we can confirm pricing and lead time.

Selecting VX31/32/33

Selecting VX31/32/33: review the full part number and your system conditions when considering this Fluid control record. Share Model, Orifice, Style, Option, Suffix, Voltage, Electrical Entry, Rectifier, the required quantity and your application notes with Pnoneks. Final compatibility and lead time are confirmed during quotation.

ABOUT THE PRODUCT

The essentials for selection.

Manufacturer: SMC
Series: VX31/32/33
Product group: Fluid control
Function: Process Valves
Applications: Suitability is evaluated against technical specifications and application conditions.
Selection parameters: Model, Orifice, Style, Option, Suffix, Voltage, Electrical Entry, Rectifier

Exact dimensions, operating ranges and compatibility depend on the full part number. Review the relevant SMC documentation and application conditions for technical selection.

TECHNICAL PRODUCT INFORMATION

Features and model options

Technical descriptions and values below are preserved in the manufacturer’s original language. Options describe alternatives within the series; not every combination is valid. We will verify the full part number when quoting.

Direct operated, 3 port solenoid valve for manifold
Max. system pressure (MPa): 2.0
Flow characteristics: 1,45 ~ 9mm²
Voltage: 48, 100, 200, 110, 220, 230, 240VAC; 12, 24VDC

Selection fields published in the source
Parameter	Options / values
Model	31 · 32 · 33
Orifice	1 (1.5 mm) · 2 (2.2 mm) · 3 (3 mm) · 4 (4 mm)
Style	1 (N.C. for Manifold) · 3 (N.O., Manifold) · 5 (COM., Manifold)
Option	Brass (C37) Body and Shading Coil, NBR Seals, Class B Coil · A [Brass (C37) Body and Shading Coil, FKM Seals, Class B Coil] · B [Brass (C37) Body and Shading Coil, EPDM Seals, Class B Coil] · D [Brass (C37) Cu Body and Shading Coil, FKM Seals, Class H Coil] · E [Brass (C37) Cu Body and Shading Coil, EPDM Seals, Class H Coil] · V [Brass, (C37) Body and Shading Coil, FKM Seals, Class B Coil, Oil-free]
Suffix	Standard · Z (Oil-free)
Voltage	1 (100 VAC 50/60 Hz) · 2 (200 VAC 50/60 Hz) · 3 (110 VAC 50/60 Hz) · 4 (220 VAC, 50/60 Hz) · 5 (24 VDC) · 6 (12 VDC) · 7 (240 VAC 50/60 Hz) · 8 (48 VAC, 50/60 Hz) · J (230 VAC 50/60 Hz)
Electrical Entry	C (Conduit) · G (Grommet) · GS (Grommet w/Surge Voltage Suppressor) · T (Conduit Terminal) · TL (Conduit Terminal and Light) · TS (Conduit Terminal w/Surge Voltage Suppressor) · TZ (Conduit Terminal w/Light and Surge Voltage Suppressor) · D (DIN Terminal) · DL (DIN Connector with light) · DS (DIN Connector w/Surge Voltage Suppressor) · DZ (DIN Connector w/Light and Surge Voltage Suppressor) · DO (DIN Connector without Connector)
Rectifier	None (for DC or AC Class H Coil) · R (AC Class B Coil w/Full-wave Rectifier)
