- Manifold base for high purity chemical valve
- Stacking type manifold
- Common IN/Individual OUT
- Port sizes: 1/4, 3/8, 1/2, 3/4
- Valve stations: 2 to 5
- Manifold material: PFA

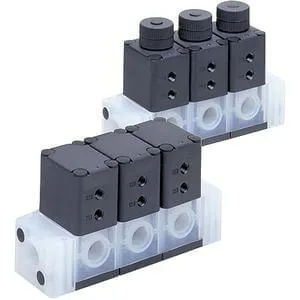

Series image. Appearance may vary by model and options.Fluid control
LLA*A
LLA*A, Manifold Base for LVA Series Valve, Stacking Type
Explore the features, model options and technical documentation for LLA*A. Contact Pnoneks to select the full part number for your application.
SMC ·Process Valves
Request a quote for your application.
Share your part number and quantity so we can confirm pricing and lead time.
Selecting LLA*A
Selecting LLA*A: review the full part number and your system conditions when considering this Fluid control record. Share Body Class, Stations, Port Size, Thread, the required quantity and your application notes with Pnoneks. Final compatibility and lead time are confirmed during quotation.
ABOUT THE PRODUCT
The essentials for selection.
- Manufacturer
- SMC
- Series
- LLA*A
- Product group
- Fluid control
- Function
- Process Valves
- Applications
- Suitability is evaluated against technical specifications and application conditions.
- Selection parameters
- Body Class, Stations, Port Size, Thread
Exact dimensions, operating ranges and compatibility depend on the full part number. Review the relevant SMC documentation and application conditions for technical selection.
TECHNICAL PRODUCT INFORMATION
Features and model options
Technical descriptions and values below are preserved in the manufacturer’s original language. Options describe alternatives within the series; not every combination is valid. We will verify the full part number when quoting.
| Parameter | Options / values |
|---|---|
| Body Class | Class 2 · Class 3 · Class 4 · Class 5 |
| Stations | 2 Stations · 3 Stations · 4 Stations · 5 Stations |
| Port Size | 02 (1/4, Class 2) · 03 (3/8, Class 3) · 04 (1/2, Class 4) · 06 (3/4, Class 5) |
| Thread | R, Rc · N (NPT) |
