- Cylinder size: 16 and 25 mm.
- Stroke: 25, 40, 50, 100 and 200 mm.
- DC motor type.
- Guide rod design.

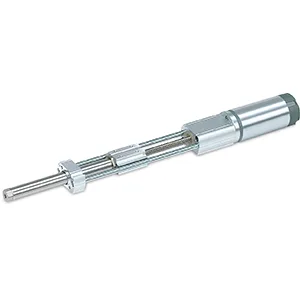

Series image. Appearance may vary by model and options.Electric actuators
L(D)ZC
Guide Rod Electric Cylinder Type - L(D)ZC
Explore the features, model options and technical documentation for L(D)ZC. Contact Pnoneks to select the full part number for your application.
SMC ·Guide Rod
Request a quote for your application.
Share your part number and quantity so we can confirm pricing and lead time.
Selecting L(D)ZC
Selecting L(D)ZC: review the full part number and your system conditions when considering this Electric actuators record. Share Built-in Magnet, Mounting, Cylinder size, Thread Lead, Stroke, Motor Size, Rod End Thread, Cover Specification, Auto Switch, Number, the required quantity and your application notes with Pnoneks. Final compatibility and lead time are confirmed during quotation.
ABOUT THE PRODUCT
The essentials for selection.
- Manufacturer
- SMC
- Series
- L(D)ZC
- Product group
- Electric actuators
- Function
- Guide Rod
- Applications
- Suitability is evaluated against technical specifications and application conditions.
- Selection parameters
- Built-in Magnet, Mounting, Cylinder size, Thread Lead, Stroke, Motor Size, Rod End Thread, Cover Specification, Auto Switch, Number
Exact dimensions, operating ranges and compatibility depend on the full part number. Review the relevant SMC documentation and application conditions for technical selection.
TECHNICAL PRODUCT INFORMATION
Features and model options
Technical descriptions and values below are preserved in the manufacturer’s original language. Options describe alternatives within the series; not every combination is valid. We will verify the full part number when quoting.
| Parameter | Options / values |
|---|---|
| Built-in Magnet | Without Magnet · D (With Magnet) |
| Mounting | B (Basic) · L (Axial Foot) |
| Cylinder size | Ø16 mm · Ø25 mm |
| Thread Lead | L (Lead 2) · M (Lead 6) · H (Lead 12) |
| Stroke | 25 mm · 40 mm · 50 mm · 100 mm · 200 mm |
| Motor Size | 3 · 5 |
| Rod End Thread | Female · L (Male) |
| Cover Specification | None · H (Partially Covered) · F (Fully Covered) |
| Auto Switch | No Switch · M9B--Solid State Switch, Gen. Purpose, 2 Wire, Horizontal, 0.5 m · M9BL--Solid State Switch, Gen. Purpose, 2 Wire, Horizontal, 3 m · M9N--Solid State Switch, Gen. Purpose, 3 Wire NPN, Horizontal, 0.5 m · M9NL--Solid State Switch, Gen. Purpose, 3 Wire NPN, Horizontal, 3 m · M9P--Solid State Switch, Gen. Purpose, 3 Wire PNP, Horizontal, 0.5 m · M9PL--Solid State Switch, Gen. Purpose, 3 Wire PNP, Horizontal, 3 m |
| Number | 2 pcs. (Or None in Case of No Switch) · S (1 pc.) |
