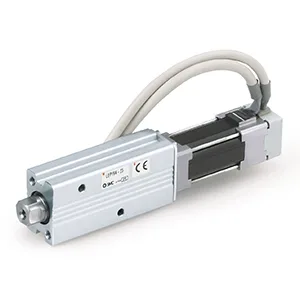

Series image. Appearance may vary by model and options.Explore the features, model options and technical documentation for LEPY. Contact Pnoneks to select the full part number for your application.
Share your part number and quantity so we can confirm pricing and lead time.
Selecting LEPY: review the full part number and your system conditions when considering this Electric actuators record. Share Size, Motor, Lead Screw, Stroke, Motor Cable Mounting Direction, Actuator Cable, Actuator Cable Length, Controller, I/O cabling for LEC controllers, Protocol, Suffix, Controller Mounting, I/O cabling for JXC Controllers and communication plug connector, the required quantity and your application notes with Pnoneks. Final compatibility and lead time are confirmed during quotation.
Exact dimensions, operating ranges and compatibility depend on the full part number. Review the relevant SMC documentation and application conditions for technical selection.
Technical descriptions and values below are preserved in the manufacturer’s original language. Options describe alternatives within the series; not every combination is valid. We will verify the full part number when quoting.
| Parameter | Options / values |
|---|---|
| Size | 6 · 10 |
| Motor | Basic Type · L (Compact) |
| Lead Screw | K (Size 6: 4 mm, Size 10: 5 mm) · J (Size 6: 8 mm, Size 10: 10 mm) |
| Stroke | 25 mm · 50 mm · 75 mm |
| Motor Cable Mounting Direction | Top Entry · L (Entry on the Left Side) · R (Entry on the Right Side) · U (Bottom Entry) |
| Actuator Cable | Without Cable · R (Robotic Flexible Cable) · S (Standard Cable) |
| Actuator Cable Length | Without Cable · 1 (1.5 m) · 3 (3m) · 5 (5m) · 8 (8m) · A (10m) · B (15m) · C (20m) |
| Controller | Without Controller · AN (LECPA, NPN, Pulse input Type) · AP (LECPA, PNP, Pulse input Type) · C (JXC, Step Motor Controller) |
| I/O cabling for LEC controllers | Without Cable · 1 (1.5 m) · 3 (3m) · 5 (5m) |
| Protocol | None · E (EtherCAT®) · 9 (EtherNet/IP) · P (PROFINET) · D (DeviceNet) · L (IO-Link) · M (CC-Link) · 5 (Parallel Input, NPN) · 6 (Parallel Input, PNP) |
| Suffix | None · 1 (For Single Axis) · F (With STO Sub-Function) |
| Controller Mounting | Screw · D (DIN Rail) · 7 (Screw Mounting) · 8 (DIN Rail) |
| I/O cabling for JXC Controllers and communication plug connector | None · S (Straight Type) · T (T-branch Type) · 1 (I/O Cable, 1.5 m) · 3 (I/O Cable, 3 m) · 5 (I/O Cable, 5 m) |
