- Compact Cylinder, Double Acting, Single Rod, End Lock
- Bore sizes (mm): 20, 25, 32, 40, 50, 63, 80, 100
- Standard stroke range (mm): 5 to 100
- Port threads: M (12 to 25 bore); Rc, NPT or G (32 to 100 bore)
- Can mount small auto switches on 4 surfaces.

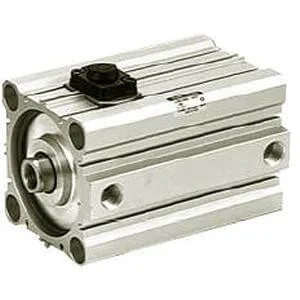

Series image. Appearance may vary by model and options.Pneumatic actuators
C(D)BQ2
C(D)BQ2, Compact Cylinder, Double Acting, Single Rod, End Lock
Explore the features, model options and technical documentation for C(D)BQ2. Contact Pnoneks to select the full part number for your application.
SMC ·Specialty Actuators
Request a quote for your application.
Share your part number and quantity so we can confirm pricing and lead time.
Selecting C(D)BQ2
Selecting C(D)BQ2: review the full part number and your system conditions when considering this Pneumatic actuators record. Share Magnet, Mounting, Bore Size, Port Thread, Stroke, Body Option, Lock Position, Release of Manual, Auto Switch, Lead Wire or Pre-wired Connector, Number, the required quantity and your application notes with Pnoneks. Final compatibility and lead time are confirmed during quotation.
ABOUT THE PRODUCT
The essentials for selection.
- Manufacturer
- SMC
- Series
- C(D)BQ2
- Product group
- Pneumatic actuators
- Function
- Specialty Actuators
- Applications
- Suitability is evaluated against technical specifications and application conditions.
- Selection parameters
- Magnet, Mounting, Bore Size, Port Thread, Stroke, Body Option, Lock Position, Release of Manual, Auto Switch, Lead Wire or Pre-wired Connector, Number
Exact dimensions, operating ranges and compatibility depend on the full part number. Review the relevant SMC documentation and application conditions for technical selection.
TECHNICAL PRODUCT INFORMATION
Features and model options
Technical descriptions and values below are preserved in the manufacturer’s original language. Options describe alternatives within the series; not every combination is valid. We will verify the full part number when quoting.
| Parameter | Options / values |
|---|---|
| Magnet | None · D (Built-in) |
| Mounting | A (Both Ends Tapped) · B (Through Hole [Standard]) · D (Double Clevis) · F (Front Flange) · G (Rear Flange) · L (Foot) · LC (Compact Foot) |
| Bore Size | Ø20 mm · Ø25 mm · Ø32 mm · Ø40 mm · Ø50 mm · Ø63 mm · Ø80 mm · Ø100 mm |
| Port Thread | Rc: 32-100 Bore; M Thread 12 to 25 Bore · TN (NPT 32-100 Bore) · TF (G 32-100 Bore) |
| Stroke | [10-14] · [15-19] · [20-24] · [25-50] · [55-100-5] |
| Body Option | C (Rubber Bumper, Rod End Female Thread) · CM (Rubber Bumper + Rod End Male Thread) |
| Lock Position | H (Rear Locking) · R (Front Lock) |
| Release of Manual | N (Non-locking Type) · L (Locking) |
| Auto Switch | No Switch · M9B--Solid State Switch, Gen. Purpose, 2 Wire, Horizontal · M9BA--Solid State Switch, Water Resist., 2 Wire, Horizontal · M9BAV--Solid State Switch, Water Resist., 2 Wire, Vertical · M9BW--Solid State Switch, 2-colour Indication, 2 Wire, Horizontal · M9BWV--Solid State Switch, 2-colour Indication, 2 Wire, Vertical · M9BV--Solid State Switch, Gen. Purpose, 2 Wire, Vertical · M9N--Solid State Switch, Gen. Purpose, 3 Wire NPN, Horizontal · M9NA--Solid State Switch, Water Resist., 3 Wire NPN, Horizontal · M9NAV--Solid State Switch, Water Resist, 3 Wire NPN, Perpendicular · M9NW--Solid State Switch, 2-colour Indication, 3 Wire NPN, Horizontal · M9NWV--Solid State Switch, 2-colour Indication, 3 Wire NPN, Vertical · M9NV--Solid State Switch, Gen. Purpose, 3 Wire NPN, Vertical · M9P--Solid State Switch, Gen. Purpose, 3 Wire PNP, Horizontal · M9PA--Solid State Switch, Water Resist., 3 Wire PNP, Horizontal · M9PAV--Solid State Switch, Water Resist., 3 Wire PNP, Vertical · M9PW--Solid State Switch, 2-colour Indication, 3 Wire PNP, Horizontal · M9PWV--Solid State Switch, 2-colour Indication, 3 Wire PNP, Vertical · M9PV--Solid State Switch, Gen. Purpose, 3 Wire PNP, Vertical · A90--Reed Switch, AC/DC Volt. <100, Horizontal · A90V--Reed Switch, AC/DC Volt. <100, Vertical · A93--Reed Switch, DC Volt. >5<24, AC Volt. <100, LED, Horizontal · A93V--Reed Switch, DC Volt. >5<24, AC Volt. <100, LED, Vertical · A96--Reed Switch, DC Volt. 4-8, LED, Horizontal · A96V--Reed Switch, DC Volt. 4-8, LED, Vertical · A72--Reed Switch, AC Volt. <200, LED, Vertical · A72H--Reed Switch, AC Volt. <200, LED, Horizontal · A73C--Reed Switch, DC Volt. >5<24, LED, Connector, Vertical · A79W--Reed Switch, 2-colour Indication, DC Volt. >5<24, LED, Vertical · A80C--Reed Switch, AC/DC Volt. >5<24, Connector, Vertical · F79F--Solid State Switch, Diagnostic, 4 Wire NPN, Lead Wire, Horizontal · J79C--Solid State Switch, Gen. Purpose, 2 Wire, Connector, Vertical · P4DW--Solid State Switch, 2-colour Indication, Magnetic Field Resist., 2 Wire |
| Lead Wire or Pre-wired Connector | 0.5 m (Or None in the Case of No Switch) · N (No Lead Wire) · M (1 m) · L (3 m) · Z (5 m) |
| Number | 2 pcs. (Or None in the Case of No Switch) · S (1 pc.) |
