- Pressure gauge with built-in switch
- Equipped with a light for verifying operation
- Equipped with a limit indicator
- Optional cover ring assembly and 3m lead wire length
- Pressure range 0 to 1.0 MPa

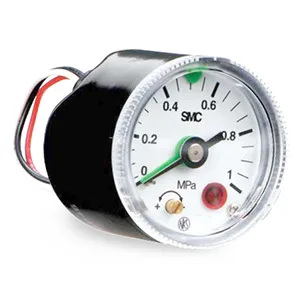

Series image. Appearance may vary by model and options.Air preparation
GP46
GP46, Pressure Gauge w/Switch (O.D. 42.5)
Explore the features, model options and technical documentation for GP46. Contact Pnoneks to select the full part number for your application.
SMC ·Pressure Gauges
Request a quote for your application.
Share your part number and quantity so we can confirm pricing and lead time.
Selecting GP46
Selecting GP46: review the full part number and your system conditions when considering this Air preparation record. Share Display Pressure, Connection Thread, Indicator Light, Attachment, Option, the required quantity and your application notes with Pnoneks. Final compatibility and lead time are confirmed during quotation.
ABOUT THE PRODUCT
The essentials for selection.
- Manufacturer
- SMC
- Series
- GP46
- Product group
- Air preparation
- Function
- Pressure Gauges
- Applications
- Suitability is evaluated against technical specifications and application conditions.
- Selection parameters
- Display Pressure, Connection Thread, Indicator Light, Attachment, Option
Exact dimensions, operating ranges and compatibility depend on the full part number. Review the relevant SMC documentation and application conditions for technical selection.
TECHNICAL PRODUCT INFORMATION
Features and model options
Technical descriptions and values below are preserved in the manufacturer’s original language. Options describe alternatives within the series; not every combination is valid. We will verify the full part number when quoting.
| Parameter | Options / values |
|---|---|
| Display Pressure | 10 (1.0MPa) · P10 (1.0 MPa, 140 psi) |
| Connection Thread | 01 (R 1/8) · 01M (R 1/8, M5 Female) · 02 (R 1/4) · 02M (R 1/4, M5 Female) |
| Indicator Light | None · L5 (LED/24 VDC) |
| Attachment | Without Cover ring assembly · C (Clear Cover w/o Protrusion, is not Removable) |
| Option | None · X201 (Lead Wire Length 3 m) · X30 (MPa and psi) · Q (CE-Marked) |
