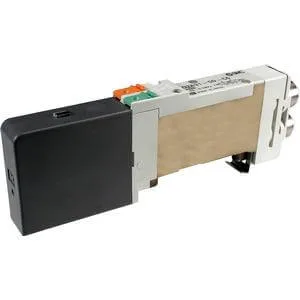

SQ23, 2000 Series, 5 Port Solenoid Valve, Plug-in Type

Explore the features, model options and technical documentation for SQ2*3*. Contact Pnoneks to select the full part number for your application.

SMC ·Pilot Operated 4/5 Port Solenoid Valves

Request a quote for your application.

Share your part number and quantity so we can confirm pricing and lead time.

Selecting SQ23

Selecting SQ2*3*: review the full part number and your system conditions when considering this Directional control valves record. Share Type of actuation, Seal Type, Function, Coil Voltage, Manual Override, Port Size, Plug Mount Port, Manifold Block, CE-Compliant, the required quantity and your application notes with Pnoneks. Final compatibility and lead time are confirmed during quotation.

ABOUT THE PRODUCT

The essentials for selection.

Manufacturer: SMC
Series: SQ2*3*
Product group: Directional control valves
Function: Pilot Operated 4/5 Port Solenoid Valves
Applications: Suitability is evaluated against technical specifications and application conditions.
Selection parameters: Type of actuation, Seal Type, Function, Coil Voltage, Manual Override, Port Size, Plug Mount Port, Manifold Block, CE-Compliant

Exact dimensions, operating ranges and compatibility depend on the full part number. Review the relevant SMC documentation and application conditions for technical selection.

TECHNICAL PRODUCT INFORMATION

Features and model options

Technical descriptions and values below are preserved in the manufacturer’s original language. Options describe alternatives within the series; not every combination is valid. We will verify the full part number when quoting.

Energy and cost savings - power consumption reduction.
Easy maintenance:The valve unit is mountable with only one screw.It is easy to add or decrease the number of valve stations without
A wide variety of pre-packaged wiring configurations.
Improved security with optional built-in back pressure check valve.

Selection fields published in the source
Parameter	Options / values
Type of actuation	1 (2 Position Single) · 2 (2 Position Double (Double Solenoid)) · 3 (3 Position Closed Centre) · 4 (3 Position Exhaust Centre) · 5 (3 Position Pressure Centre) · A (4 Position Dual 3 Port N.C./N.C.) · B (4 Position Dual 3 Port Valve N.O./N.O.) · C (4 Position Dual 3 Port N.C./N.O.)
Seal Type	0 (Metal Seal) · 1 (Rubber Seal)
Function	Standard (0.4 W) · B [Quick Response Type (0.95 W)] · BD (B + D) · BN (B + N) · BDN (B + D + N) · BDNR (B + D + N + R) · BDR (B + D + R) · BNR (B + N + R) · BR (High Speed Response und External Pilot) · D (Dbl Sol) · DN (D + N) · DNR (D + N + R) · DR (D + R) · N (-COM) · NR (N + R) · R (External Pilot)
Coil Voltage	5 (24 VDC) · 6 (12 VDC)
Manual Override	Non-locking Push Type · B (Locking Slotted Type - Tool Required) · D (Slide Lock Type)
Port Size	C4 (Side Ported ø4 One-touch Fitting) · C6 (Side Ported ø6 One-touch Fitting) · C8 (Side Ported ø8 One-touch Fitting) · L4 (Top Ported w/ø4 One-touch Fitting) · L6 (Top Ported w/ø6 One-touch Fitting) · L8 (Top Ported w/ø8 One-touch Fitting) · LN3 (Top Ported w/5/32" One-touch Fitting) · LN7 (Top Ported w/1/4" One-touch Fitting) · LN9 (Top Ported w/5/16" One-touch Fitting) · N3 (Side Ported 5/32" One-touch Fitting) · N7 (Side Ported 1/4" One-touch Fitting) · N9 (Side Ported 5/16" One-touch Fitting) · LN3 (Top Ported w/5/32\" One-touch Fitting) · LN7 (Top Ported w/1/4\" One-touch Fitting) · LN9 (Top Ported w/5/16\" One-touch Fitting) · N3 (Side Ported 5/32\" One-touch Fitting) · N7 (Side Ported 1/4\" One-touch Fitting) · N9 (Side Ported 5/16\" One-touch Fitting)
Plug Mount Port	None · A (A Port) · B (B Port)
Manifold Block	w/o Manifold Block · M (Manifold Block) · MB (Back Pressure Check Valve w/Manifold Block)
CE-Compliant	Q (CE-Marked)
